Advanced Version

This version extends the Basic Version to add some of the Looper X behaviour associated with Function Menu A and Function Menu B:

• Pedals 1-4 work as expected when in Normal Mode or Mute Mode
• Pedal 5 works as expected when in Normal Mode, Mute Mode or Tap Tempo
• Pedal 6 works as expected when in Normal Mode
• Pedal 7 works as expected when in Normal Mode or Mute Mode
• Pedal 8 works as expected when in Normal Mode and can be used to switch between Function Menu A and Function Menu B

After entering Function Menu A

• Pressing Pedal 5 enables “Peel Mode”. Pedals 1–4 can then be used to permanently “peel off” the successive layers of the corresponding looper track.
• Pressing Pedal 6 clears all tracks.
• Pressing Pedal 7 enables “Clear Track Mode”. Pedals 1–4 can then be used to clear individual tracks.
• Pressing Pedal 8 exits Function Menu A.
• Tuner, FX, Load and Save functionality is not implemented.

After entering Function Menu B:

• Pressing Pedal 2 enters “Multiply Mode”. Pedals 1-4 can then be used to multiply the length of the active track by 0.5X, 2X, 4X and 8X respectively.
• Pressing Pedal 3 enters “Speed Mode”. Pedals 1-4 can then be used multiply the speed (and pitch) of the active track by 0.5X, 2X, 4X and 8X respectively.
• Pressing Pedal 7 enters “Reverse Mode” Pedals 1-4 can then be used to toggle the play direction of Track 1-4. Pedal 5 reverses the play direction of all tracks.
• Pressing Pedal 8 exits Function Menu B.
• Bounce, Backing Track, Transpose and Fade functionality is not implemented.

Below are some images of how the implementation looks in Möbius. (Click on any image to enlarge it.)

Normal Mode: Pedals 1-4 select corresponding tracks or solo them if double pressed. Pedal 5 acts as Rec/Play/Overdub pedal with Undo if held. Pedal 6 stops all tracks and clears them if held. Pedal 7 enters Mute Mode. Pedal 8 enters Function Menu A, Tap Tempo Mode if double pressed and toggles between Function Menu B and Function Menu A if held.

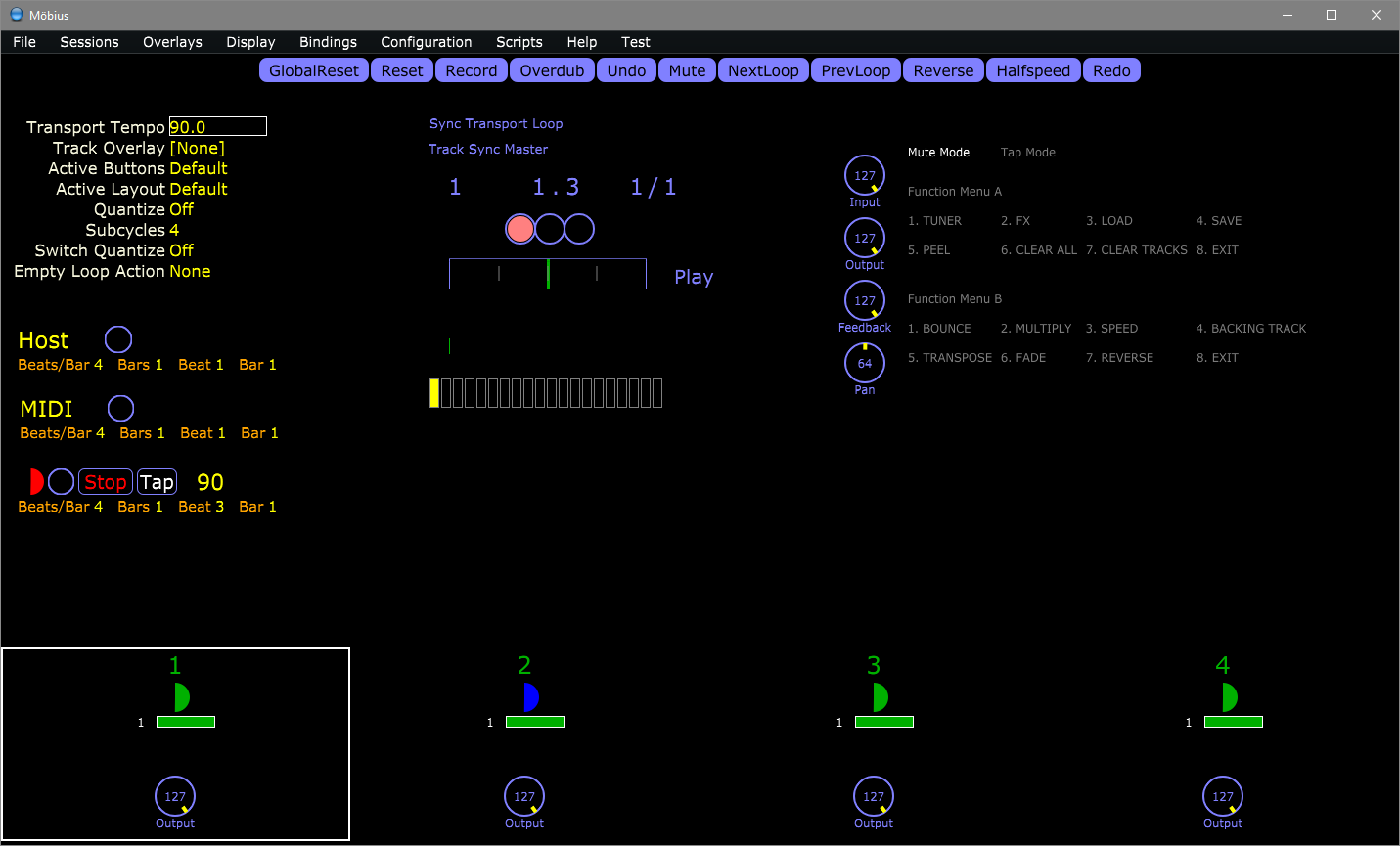

Mute Mode: Pedals 1-4 Mute/Unmute the corresponding track or solo them if double pressed. Pedal 7 exits Mute Mode.

Tap Tempo Mode active: Double tapping Pedal 5 sets the Tempo in the Transport. Pedal 8 exits Tap Tempo Mode and returns to Normal Mode.

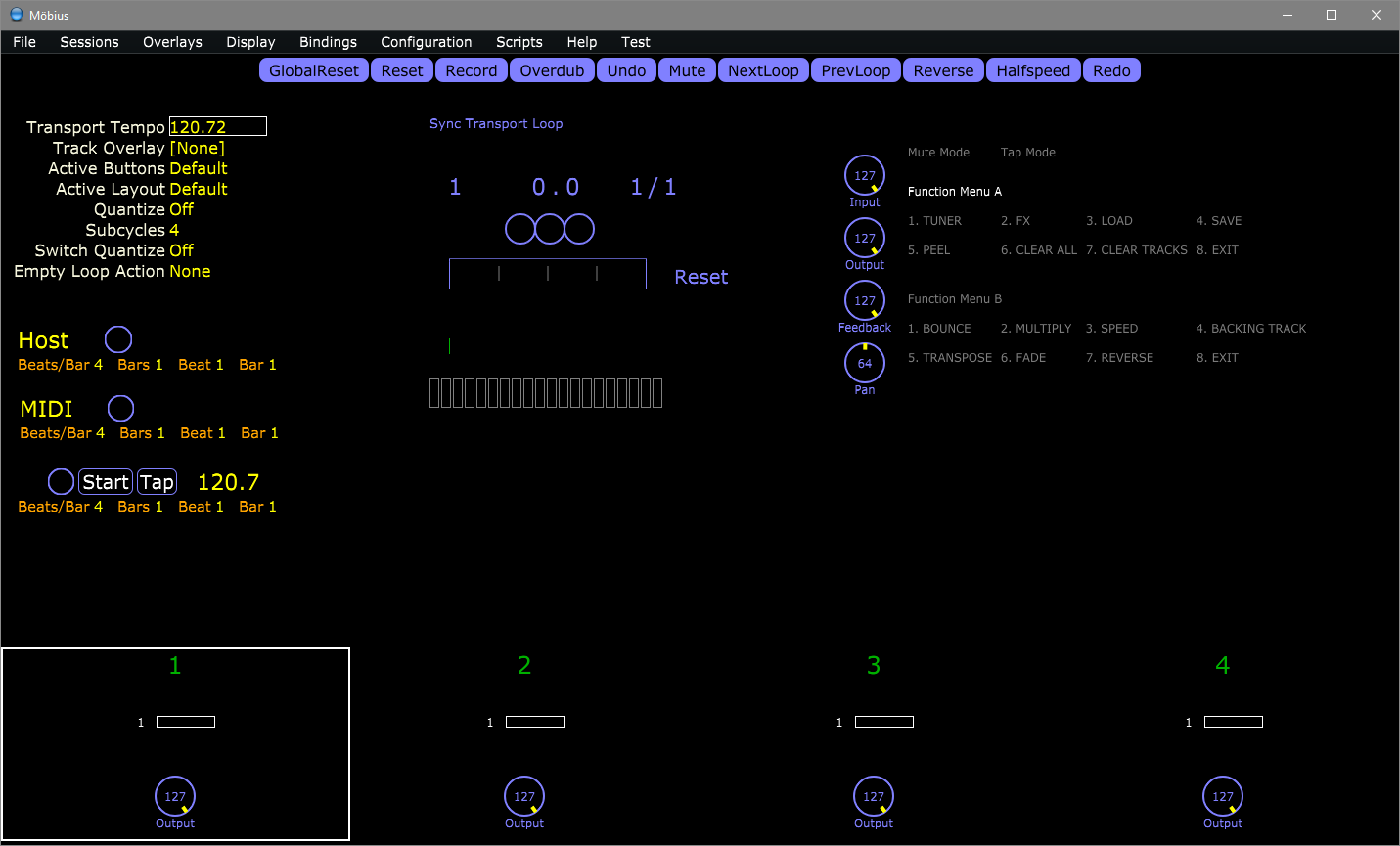

Function Menu A active: Pressing Pedal 5 enters Peel Mode. Pressing Pedal 6 clears all tracks. Pressing Pedal 7 enters Clear Track Mode. Pedal 8 exits Function Menu A if pressed and toggles between Function Menu A and Function Menu B if held. (Other Menu A functions are not currently implemented)

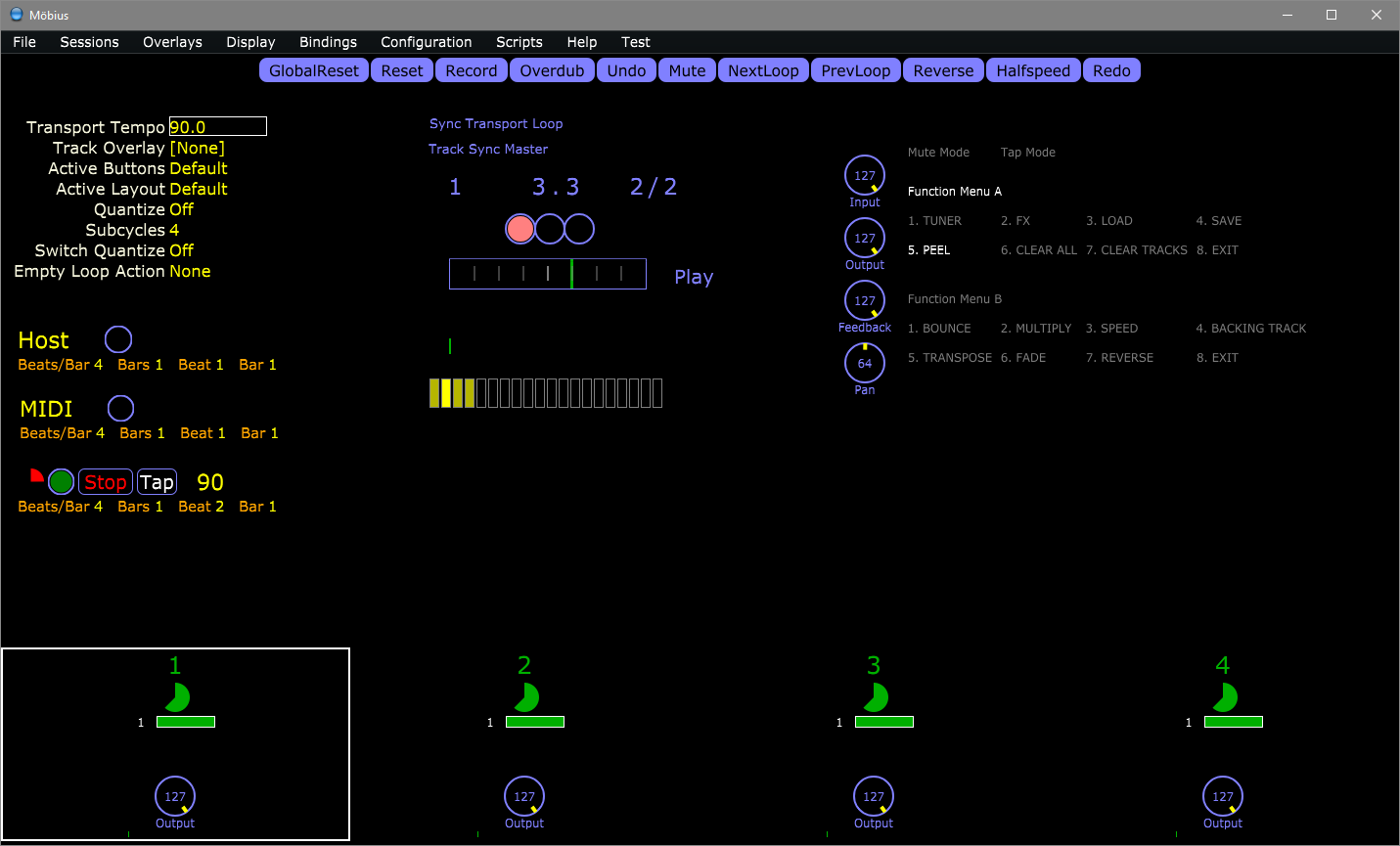

Peel Mode active: Pressing Pedals 1-4 removes an overdub layer from the corresponding track. Pressing Pedal 8 exits Peel Mode and returns to Normal Mode.

Clear Track Mode active: Pressing Pedals 1-4 clears the corresponding track. Pressing Pedal 8 exits Clear Track Mode and returns to Normal Mode.

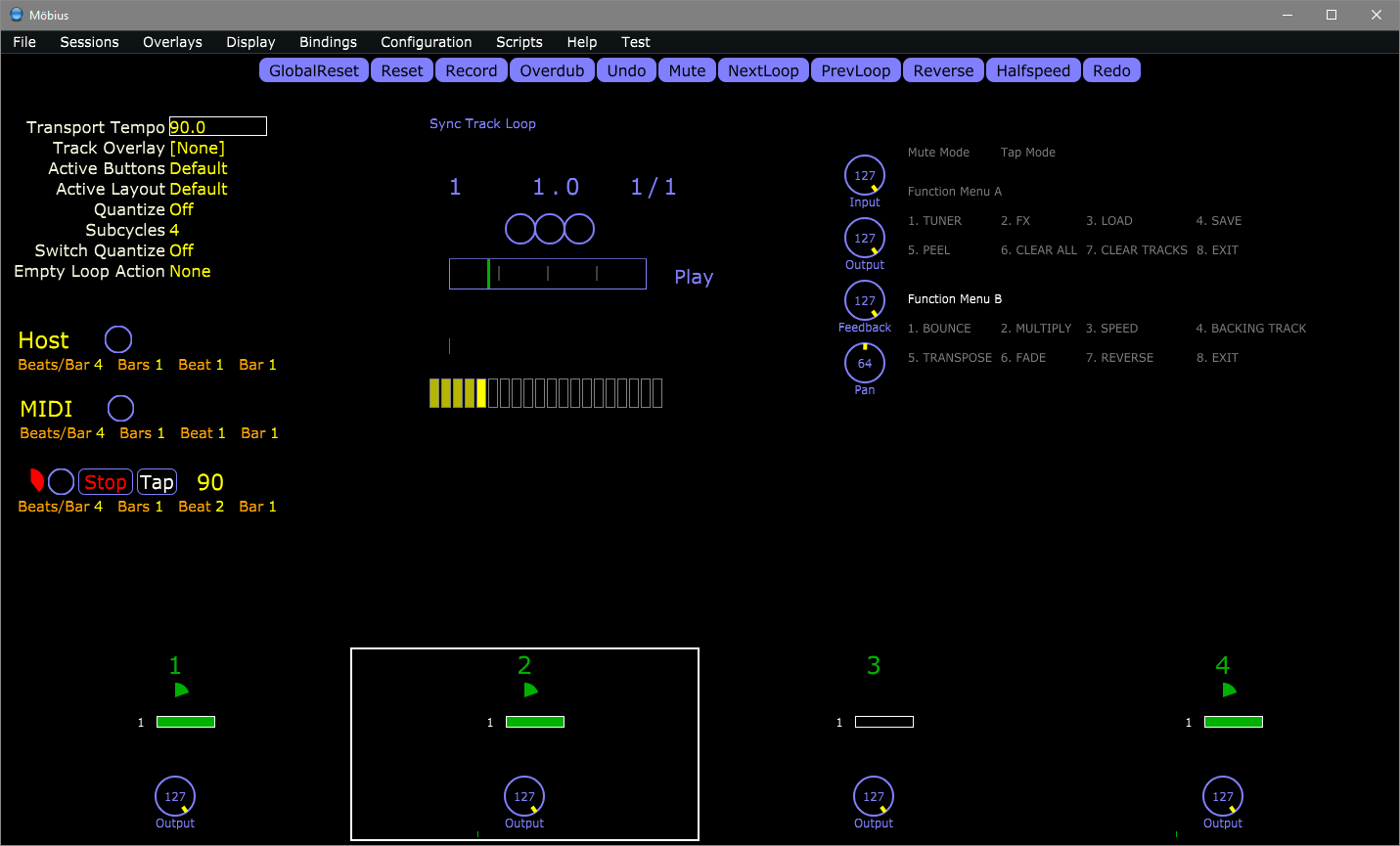

Function Menu B active: Pressing Pedal 2 enters Multiply Mode. Pressing Pedal 3 enters Speed Mode. Pressing Pedal 7 enters Reverse Mode. Pedal 8 exits Function Menu B if pressed and toggles between Function Menu A and Function Menu B if held. (Other Menu A functions are not currently implemented)

Multiply Mode active: Pressing Pedals 1-4 multiplies the active track by 0.5, 2, 4 and 8 respectively. Pressing Pedal 8 exits Multiply Mode and returns to Normal Mode.

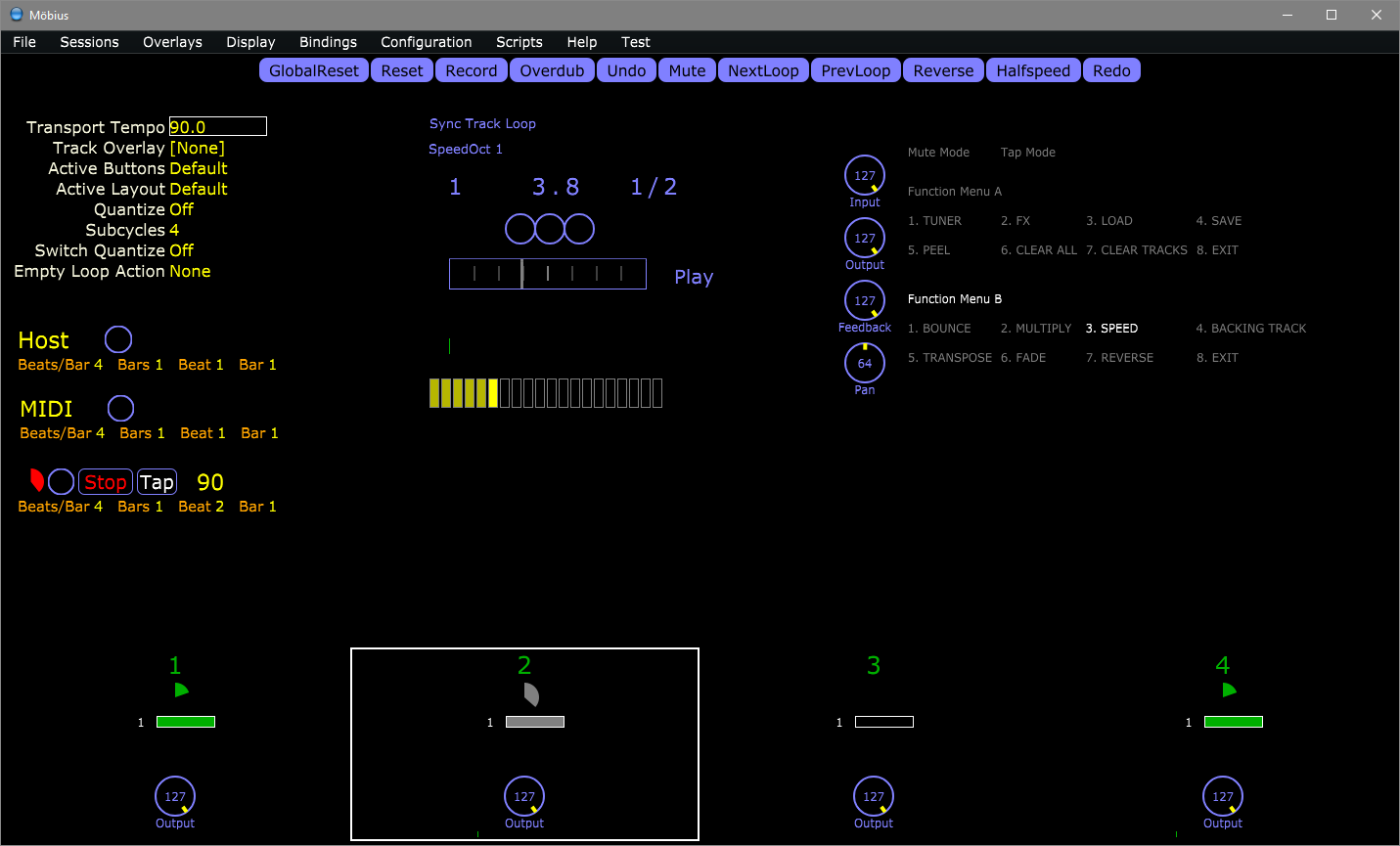

Speed Mode active: Pressing Pedals 1-4 changes the Speed (and Pitch) of the active Track by 0.5, 2, 4 and 8 times respectively. Pressing Pedal 8 exits Speed Mode and returns to Normal Mode.

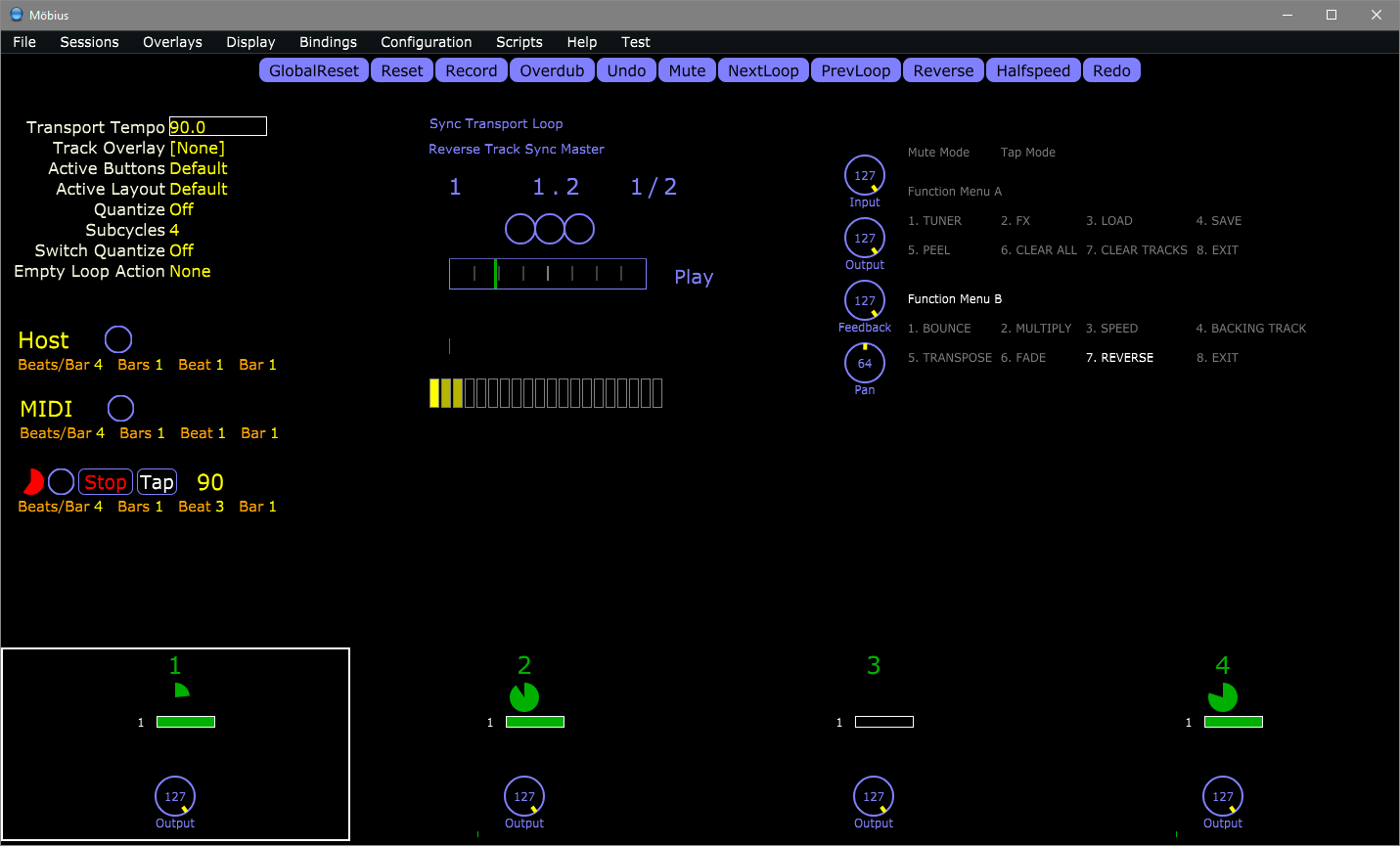

Reverse Mode active: Pressing Pedals 1-4 reverses the play direction of the corresponding Track. Pressing Pedal 5 reverses the play direction of all tracks simultaneously. Pressing Pedal 8 exits Reverse Mode and returns to Normal Mode.
